4.1 画像ファイルの読込

画像ファイルを読み込む例としてImageLoadクラスを示す.

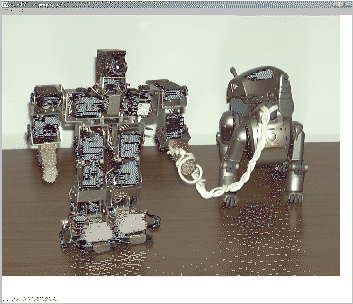

図 4: 画像表示
\includegraphics[width=7.8cm]{/home/inaba/eps/lecture/fig/ImageLoad.eps}
画像の表示には,java.awt.Graphicsクラスのメソッドである drawImageメソッドを用いる.
// ImageLoad.java
/*
  <applet code="ImageLoad.class"
  width=1000 height =800>
  </applet>
*/
import java.applet.Applet;
import java.awt.*;

public class ImageLoad  extends Applet {
    Image image;

    public void init(){
        image = getImage(getDocumentBase(),
                          "aiboakira.jpg");
    }

    public void paint(Graphics g){
        g.drawImage(image, 0, 0, this);
    }
}
ImageLoad.classをappletとして取り込む htmlファイルは次のようになる.
<html>
<head><title>ImageLoad Applet</title>

<applet code="ImageLoad.class" width=1000 height =800>
</applet>
<hr>
<A HREF="ImageLoad.java">source</a>

</body>
</html>
